Patterns

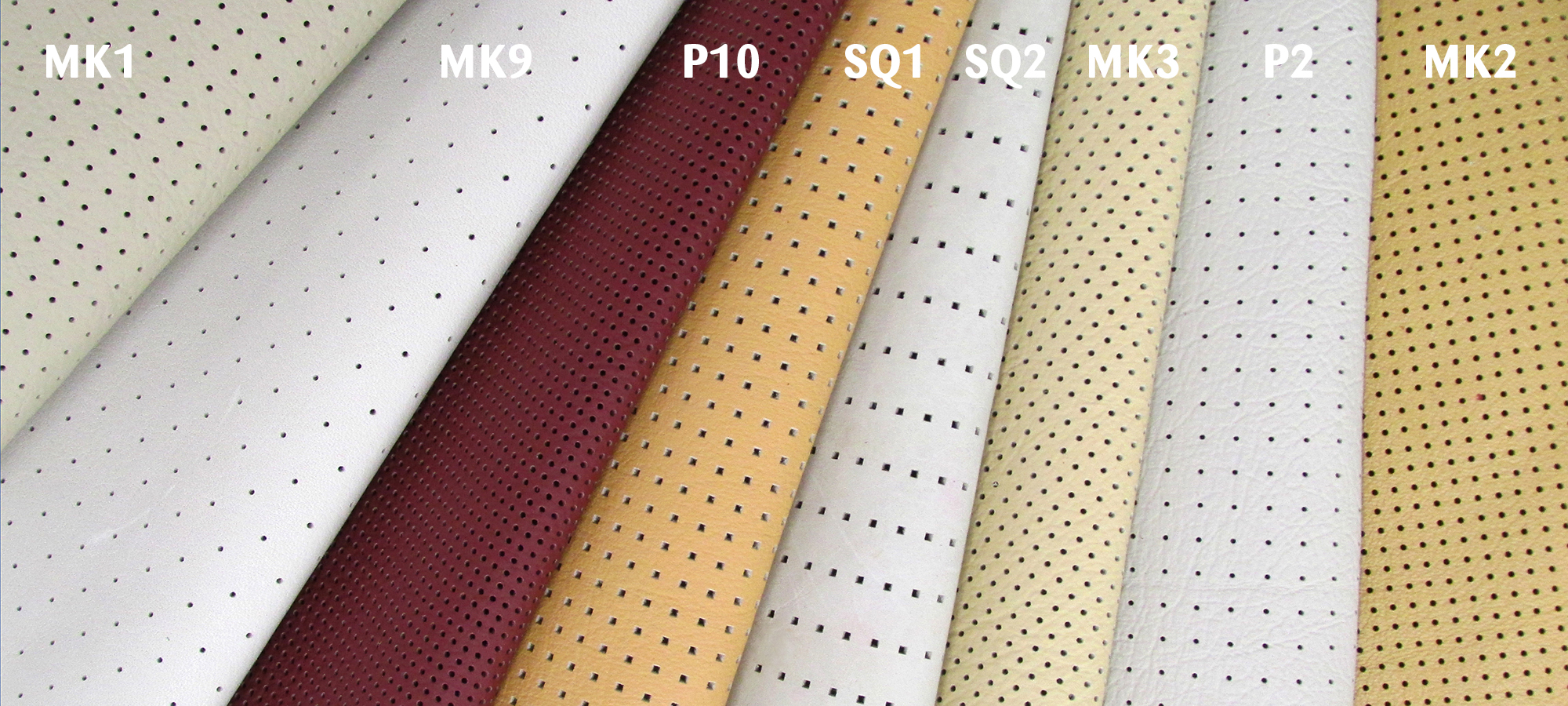

Our tooling includes some of the popular hole shape, size and pattern formation. Many used in the Automotive industry, these include:
MK1 (Mercedes, Opel, Ford).
MK2 (Mercedes, Opel, Ford).
MK3 (Mercedes - Land Rover - climatic seats).
MK9 (Porsche, VW Beetle).
SQ1 - C5 (Mercedes AMG).
MK17 (Land Rover- Jaguar )
REC 1 (Land Rover)
Stacks Image 1673
Take a closer look at each pattern type and even download the pattern image if you wish. Scroll to bottom for our Pattern Card, which is also downloadable.

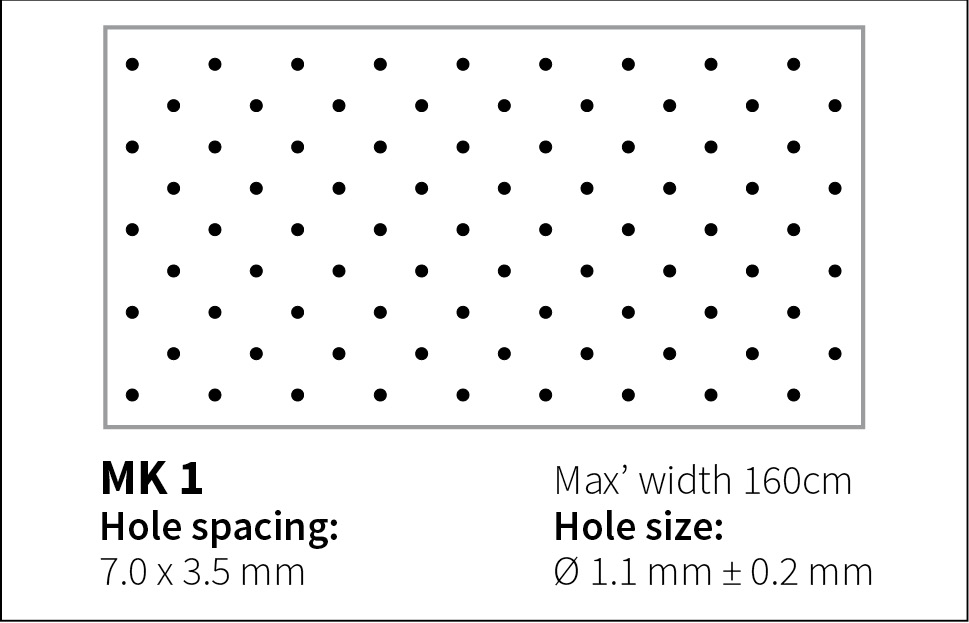

MK1

MK1-ukPerforation-pattern

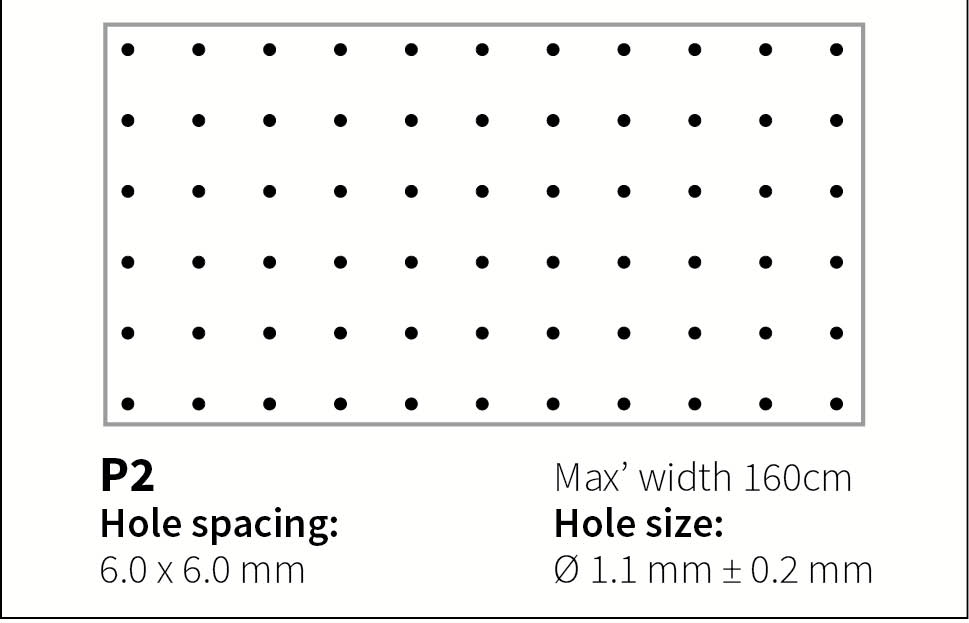

P2

P2-ukPerforation-pattern

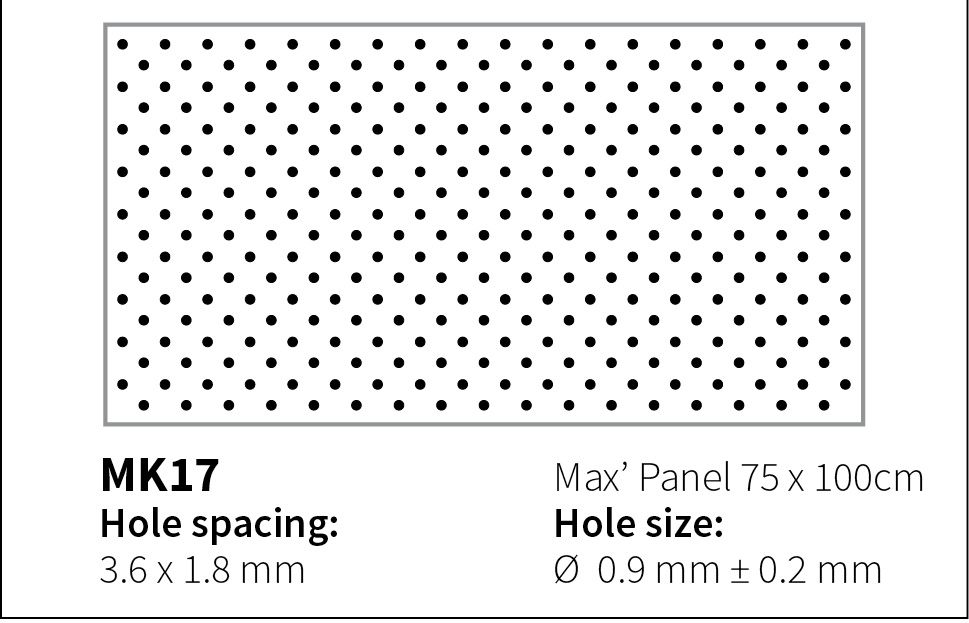

MK17

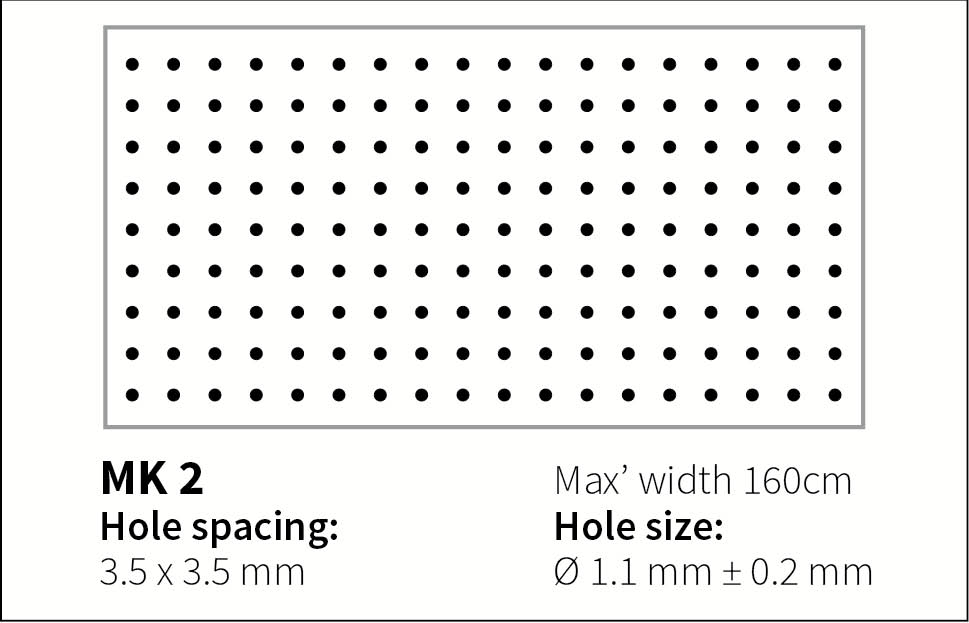

MK2

MK2-ukPerforation-pattern

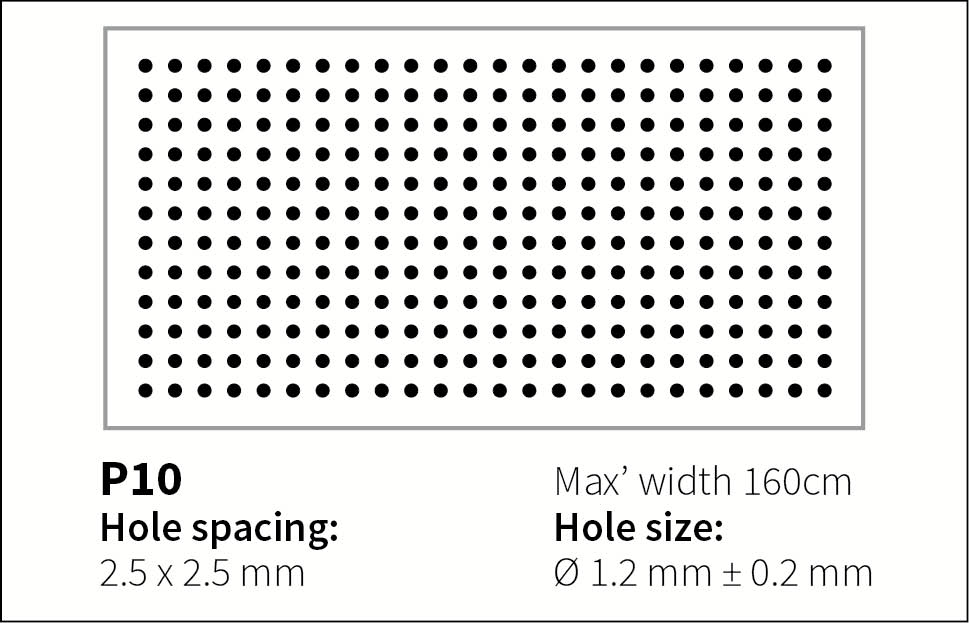

P10

P10-ukPerforation-pattern

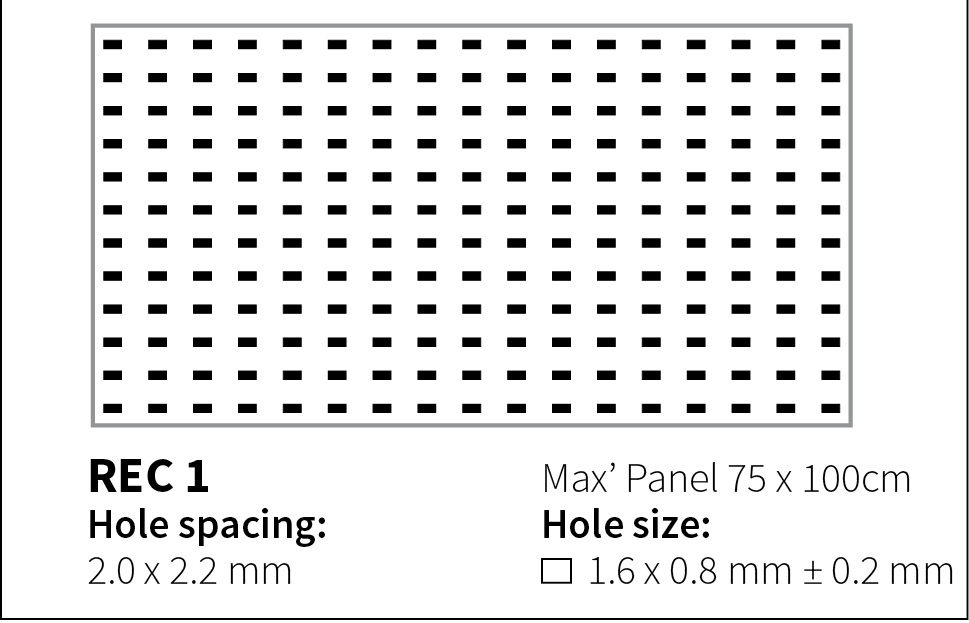

REC1

Stacks Image 1722

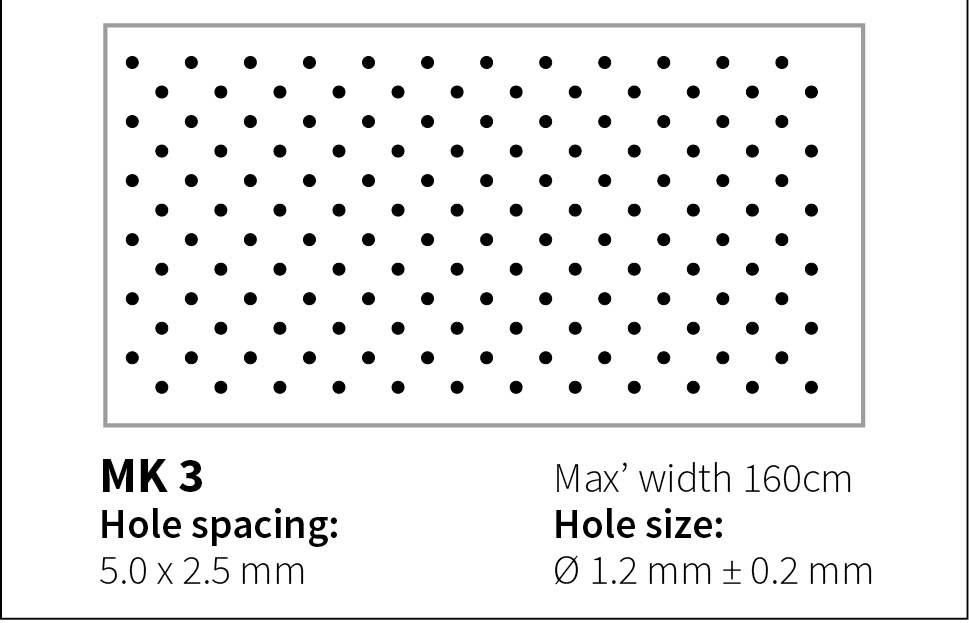

MK3

MK3-ukPerforation-pattern

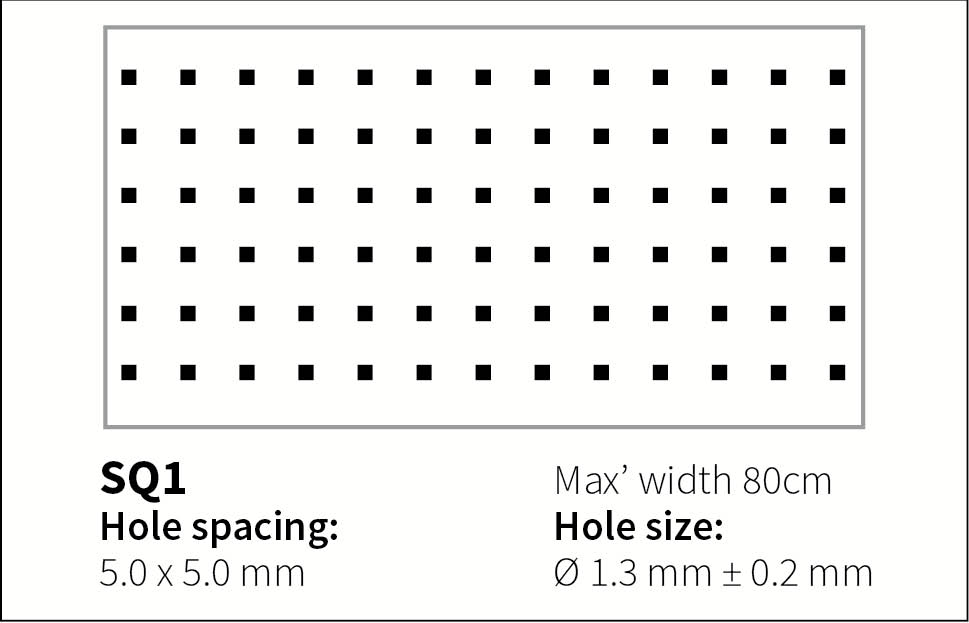

SQ1 (AMG)

SQ1 AMG-ukPerforation-pattern
Stacks Image 1384
Download our Pattern Card
Click the thumbnail images to download our Pattern Card to keep as a handy reminder.
November 2018 Version.

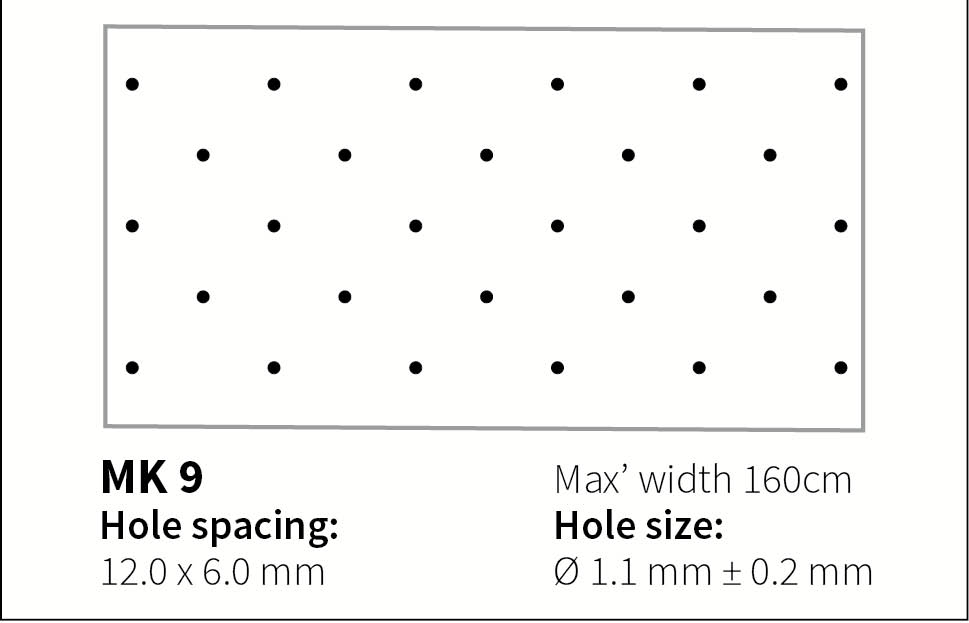

MK9

MK9-ukPerforation-pattern

SQ2

SQ2-ukPerforation-pattern
Stacks Image 1386
Note: Does not yet include the new MK17 and REC1 patterns. Please contact us for more details.

Tel: 01202 744366 or Email: enquiries@ukperforation.co.uk
